Question:

The shape of your RV-6/7/9 Aviator seat looks different. Has the frame been changed in some way?



Answer:

Yes, the Aviator seats are supplied with a special frame that replaces the stock seat back. This design allows the frame to be enclosed in the upholstery much like automotive seats. This also makes it possible to incorporate an internal track system for the sliding lumbar mechanism. The lumbar can be adjusted by moving a knob on the back of the seat. Because the upholstery wraps around the frame, a rear pocket can also be built into the covering. Offset hinge locations allow the seat to hinge forward more easily, and there is the option to add headrests if desired.

The main structure of the Aviator seats is a square aluminum tube bent into an inverted “U” shape. This tube structure is very efficient. The bare frame (before foam and upholstery are added) is almost identical to the weight of the stock frame, but includes the sliding lumbar mechanism. For seat weight comparisons   click here

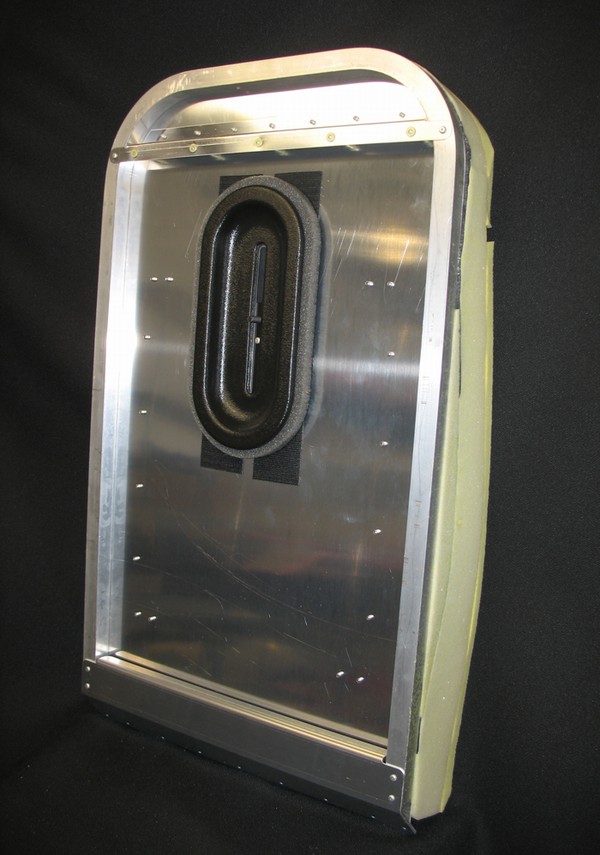

RV-6/7/9 Aviator Seat Frame

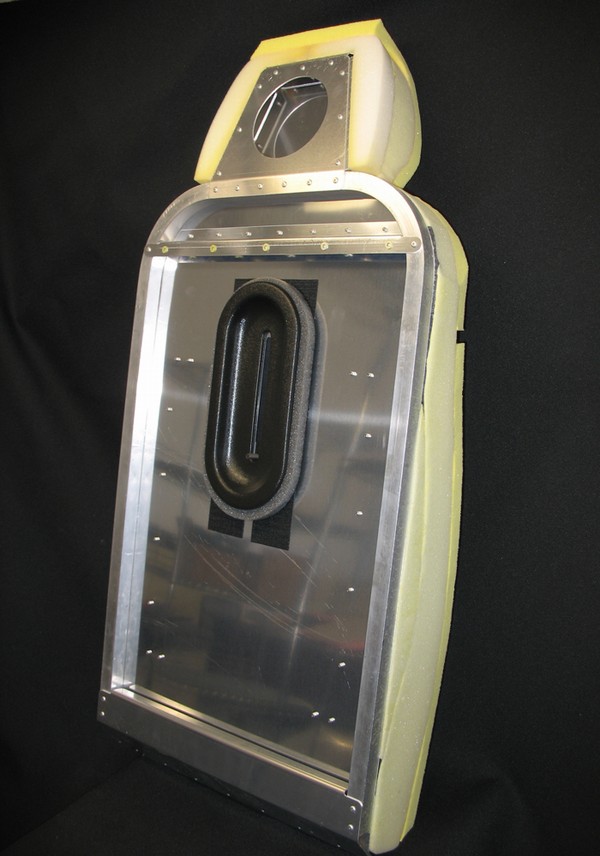

RV-6/7/9 Aviator Seat Frame with Headrest

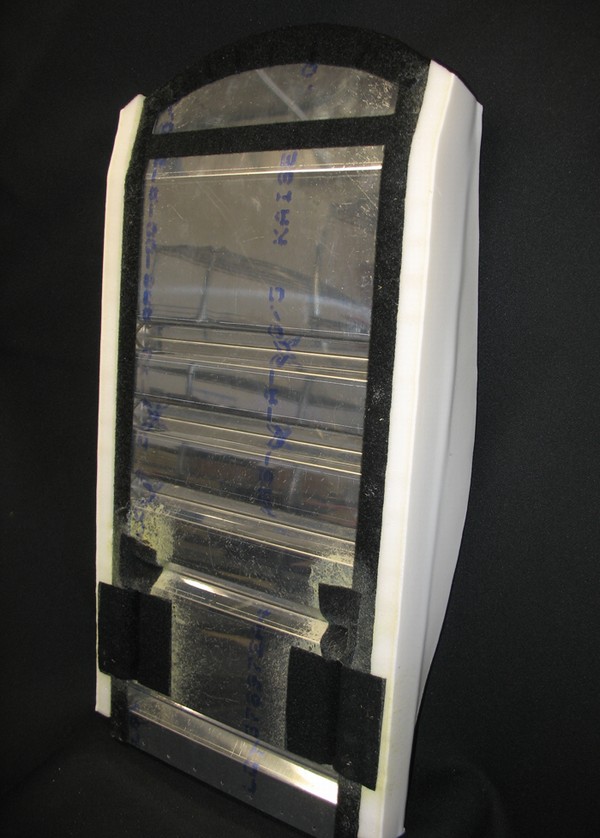

RV-8 Aviator Seat Frame

For those who prefer the stock RV seat design, we also offer our Sportsman seats. For more information click on the following links

RV-6/7/9 Sportsman Seat

RV-8 Sportsman Seat

RV-6/7/9 Sportsman Ultra Light Seat





Please feel free to contact us with any questions you might have that were not addressed in our FAQ section
